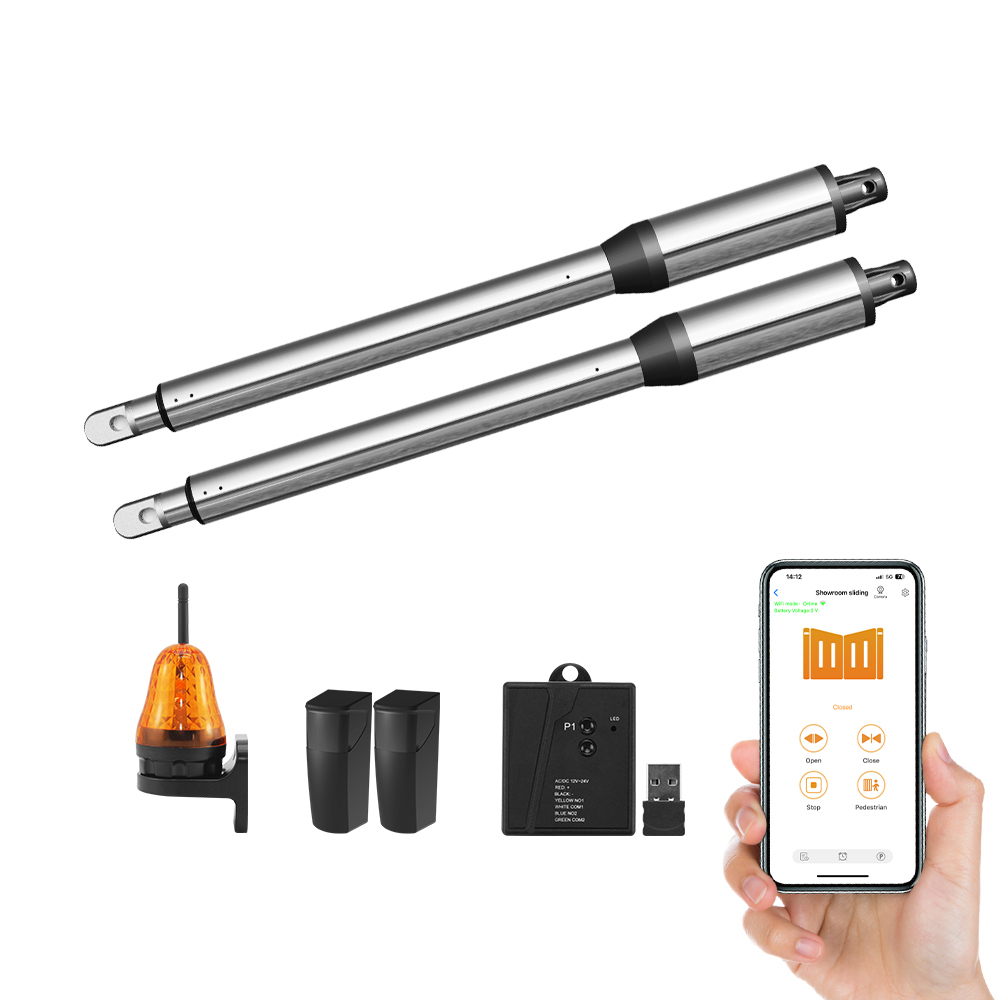

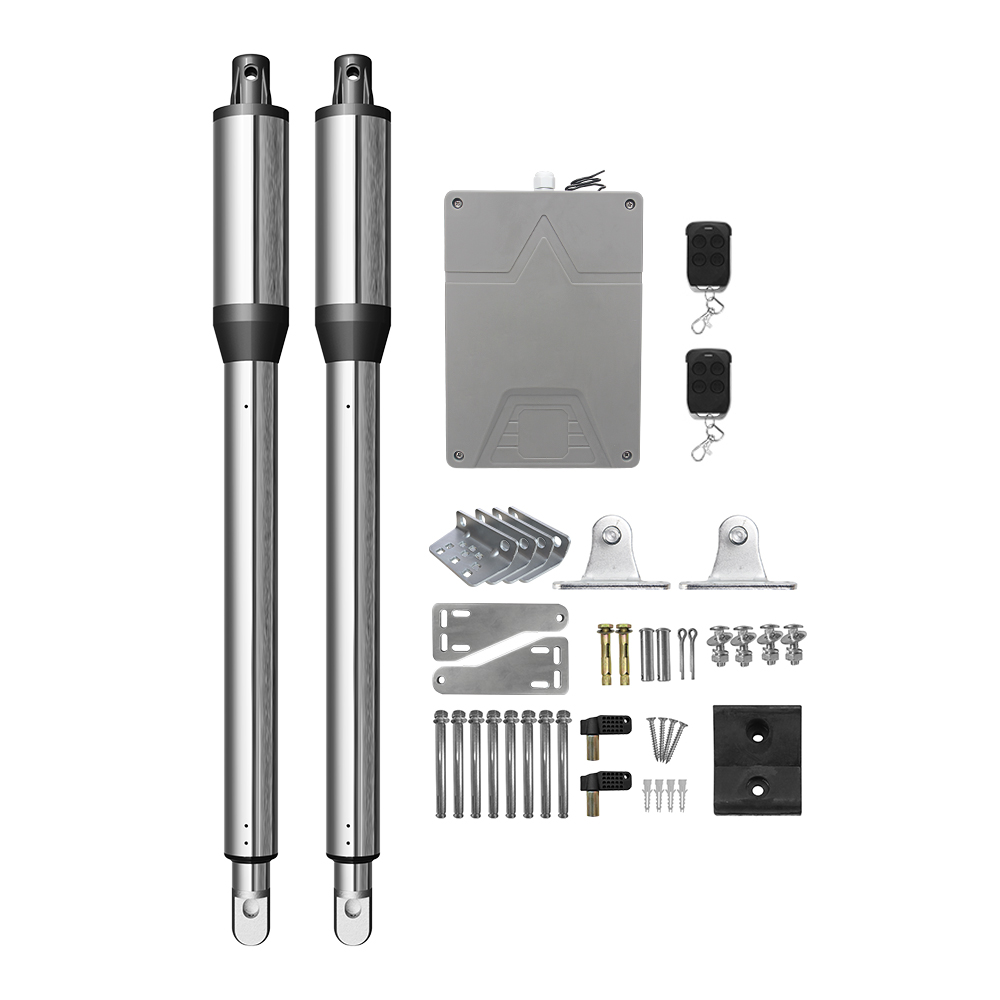

High performance double arm automatic door operators. Electric 24VDC smart swing gate opener ideal for private houses and modern residential entrance.
The Baroxon Ba-PKM-C01 is a premium Mesin Pagar Otomatis designed for robust performance. Engineered as a Screw Driven Piston Type operator, it effortlessly handles swing gates up to 200KG per leaf. Perfectly suited for the Indonesian climate, this Autogate system supports Solar Power and back-up battery integration for uninterrupted security during power outages.
| Application | Villa / Residential Gate | Input voltage | DC24V 40W |
| Brand Name | Baroxon Autogate System | Model Number | Ba-PKM-C01 |
| Single-leaf weight | 200KG swing gate motor | Single-leaf length | 2m-2.5m |
| Driving Method | Screw Driven Piston Type | Rod's running speed | 1.6cm/s |
| Rod's max travel | 300mm | Rotational speed | 250PRM |
| Feature | Easy Operation / Soft Stop | Battery | Back up battery & solar board |
| Working Temp | -25°C~+55°C | Warranty | 1 Year |
1. Proven Durability: Field tested by international quality standards with Min.30,000 open/close cycles.
2. Emergency Manual Release: Integrated clutch device for power failure. Use the special Baroxon key to release the clutch and operate the gate manually.
3. Safety Obstacle Detection: The motor automatically stops working when the gate meets an obstacle, protecting your vehicle and family.
4. Soft Start & Soft Stop: Smooth acceleration and deceleration to avoid accidents and reduce mechanical wear.
5. Quiet Operation: Metal pinion gear driving design ensures very low working noise, perfect for quiet residential areas.
6. Dual Gate Synchronization: Adjustable opening/closing interval between the master and slave gate leaves.

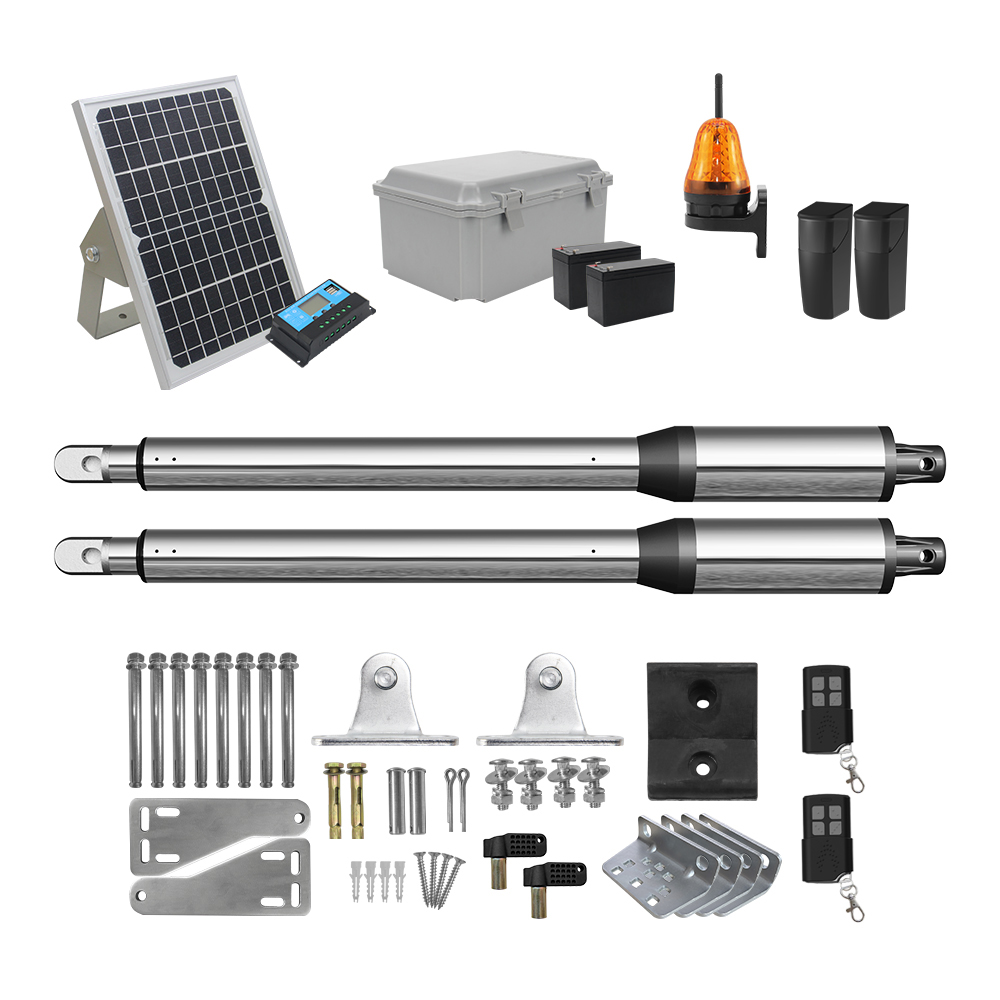

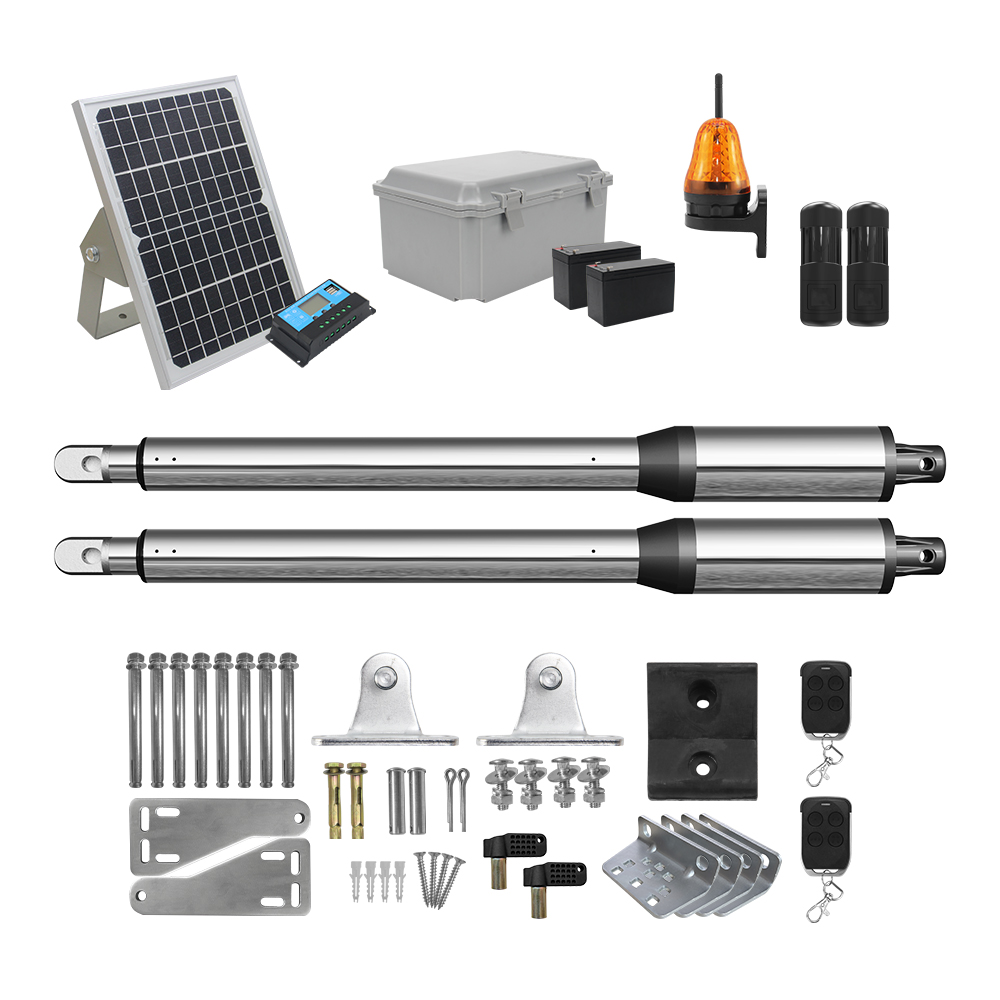

7. Solar Ready: This 24VDC Swing gate opener is fully compatible with solar power systems for green energy solutions.
| Material | High-grade Stainless Steel |
| Motor Power | 24VDC 40W |
| Max Single-leaf Weight | 150-250kg |
| Protection Class | IP55 Weatherproof |
Q1: Is this motor suitable for heavy rain in Indonesia?
Yes, the Baroxon Ba-PKM-C01 features an IP55 protection rating, making it highly resistant to dust and heavy rain, ideal for tropical conditions.
Q2: Can I install this swing gate opener myself?
While it features "Easy Operation," we recommend hiring a local Kontraktor Pagar Otomatis for precise alignment. We provide Online Technical Support and Free Spare Parts if needed.
Q3: What if there is a "Mati Lampu" (power failure)?
The system comes with a manual release key. Alternatively, we highly recommend adding a Back-up Battery or Solar Panel for continuous operation.
