Ensure regulatory compliance with our ISO compliant, CE certified smart car parking boom barrier. Features an integrated high-accuracy ANPR camera system for automated tenant and visitor auditing.
| Type | Card. Code. Key. Smartphone. Other | Special Features | Remotely controlled take-off and landing. OEM&ODM |
| Storage | Cloud. Memory Card | Material | Cold rolled steel. Stainless Steel. Zinc Alloy |
| Place of Origin | Shandong. China | Model Number | YH-0DZ1920PRO |
| Brand Name | Baroxon | Input Power | DC 24V Brushless / AC 110V / Servo Motor |
| Motor Power | 110/220VAC +10% | Motor Drive | 24V DC brushless motor |
| Operating Speed | 3S-6S | Maximum Rod Length | ≤4 meters |
| Chassis Dimensions | 1015*320*225 MM | Remote Control Distance | ≤30m |
| Operating Temperature | -30℃~80℃ | Waterproof Rating | IP55 |
| Selling Units | Single item | Single package size | 110.5X43.5X40.5 cm |
| Single gross weight | 48.000 kg |
Operator-Centric Microprocessor Layout: Engineered with an optimized mainboard logic system supporting rapid terminal lane setup, local encrypted badge card tokens, and variable parameter adjustments tailored for high-volume traffic checkpoints.
Modular Enclosure Engineering: Features a streamlined standalone architecture to allow quick driveway installation and easy maintenance, providing a highly reliable automated parking gate barrier network built for demanding multi-lane operations.
Heavy-Duty Mechanical Drive System: Employs an industrial grade DC brushless motor paired with advanced frequency conversion controllers to provide precise boom arm deceleration, highly smooth travel arcs, and low acoustic output at any perimeter access checkpoint.
Intelligent Proactive Vehicle Safety: Equipped with active protection measures including electronic auto-rebound obstruction tracking, break-away boom arm connectors, and an ergonomic power-off mechanical clutch layout compatible with proximity card reader swing barrier gate terminals.
Universal Transit Access Interfacing: Integrates smoothly with security speed gates, pedestrian control barriers, inductive loop systems, and access credentials via our standardized vehicle detector parking lot barrier gate 220v brushless dc motor configuration for supermarket entrance gate systems and complex transit stations.

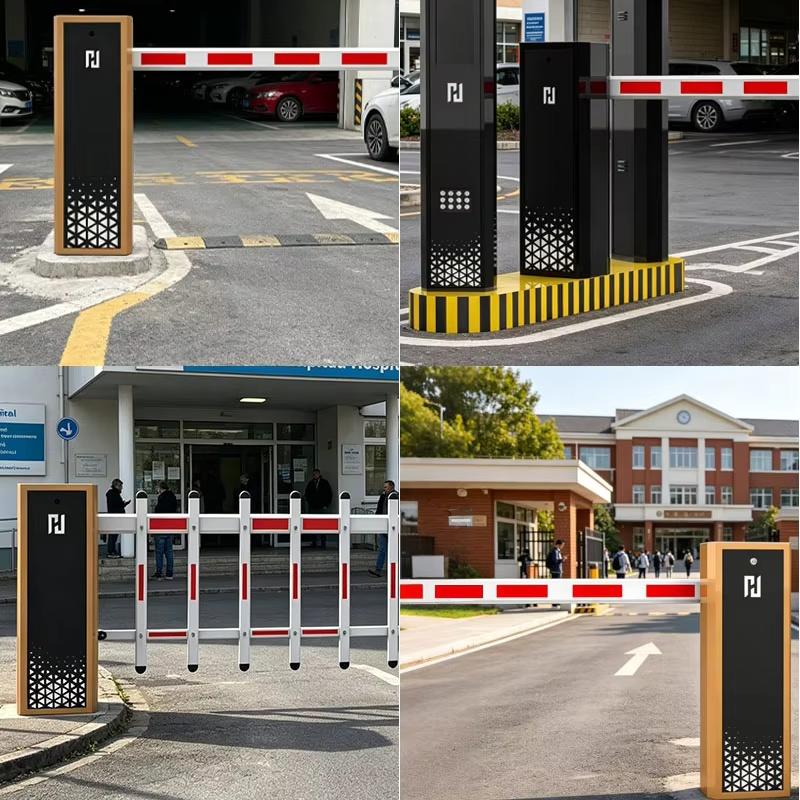

Comprehensive Integration Across Multiple Scenarios: Ideally configured for commercial shopping malls, corporate office buildings, business centers, luxury hotels, and holiday resorts. It also delivers absolute perimeter integrity across heavy-duty industrial parks, distribution logistics hubs, freight warehouses, port terminals, construction checkpoints, transportation facilities (airports and railway stations), healthcare medical centers, government administration buildings, university campuses, sports stadiums, and express highway toll lanes.
Watch our industrial-grade automatic drop arm barriers and electric security boom gates in action below:
As a premier supplier in the perimeter security and access control industry, BAROXON offers full turnkey engineering and manufacturing capabilities for vehicle access control, commercial entry security, and intelligent parking lot deployment. Our rugged, heavy-duty commercial parking lot gate mechanism lineups offer unmatched reliability for toll operators, commercial facility managers, and high-security installations worldwide.

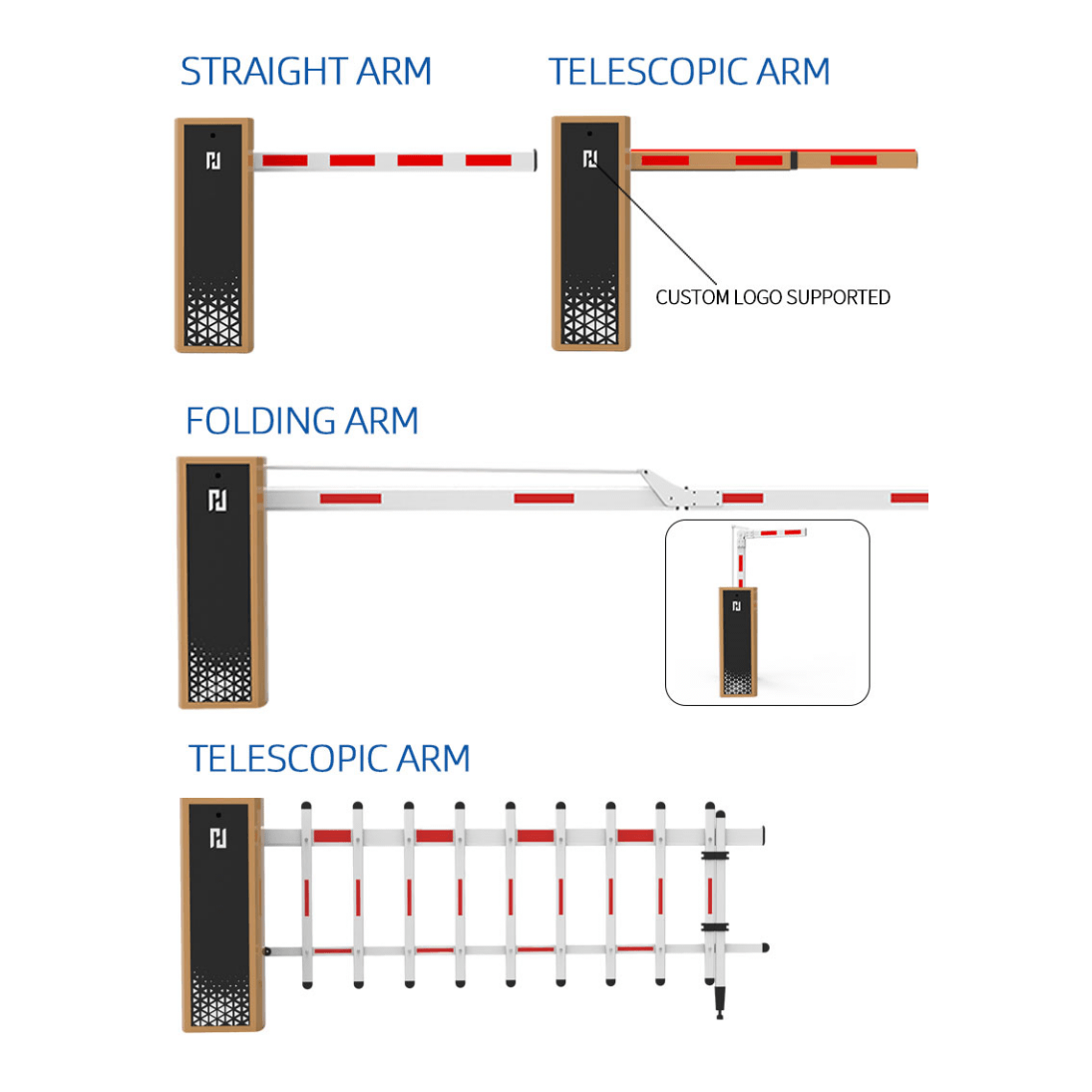

Strategic Market Positioning: Expert focus on heavy-duty straight-arm gate operators, multi-tier fence barrier gates, folding arm barriers, and advanced automatic rfid boom barrier software integration.
Global Deployment Footprint: Proudly supplying toll operators, residential estate developers, and commercial contractors across 200+ countries and regions including the United States, United Kingdom, Canada, and Australia.
Full-Service Project Support: Delivering complete perimeter security project site assessments, design blueprints, system hardware installation training, and one-stop dedicated technical consultation.
Convenient Structural Design: Custom-engineered internal tooling and molds facilitate rapid site deployment, quick installation, and worry-free field maintenance.
Technological Innovation Barriers: Possessing an extensive intellectual property portfolio with over 100 core product patents covering DC brushless control boards and barrier safety systems.
Highly Professional Engineering Team: Core technical R&D and production management teams boast over 20 years of in-depth industrial access control manufacturing experience.
Uncompromising Service Commitment: Instant 1-minute initial online customer service response, 2-hour technical issue processing, and rapid 2-day closed-loop resolution management.
Q1: What is the opening and closing speed of the barrier gate?
A: The standard operating speed profile covers 3S-6S, which can be custom configured during setup depending on specific arm dimensions. This variable tuning ensures smooth operation at any entrance checkpoint.
Q2: What power supply options does the system require?
A: The housing features a dual compatible design that handles 110/220VAC +10% input line power. It translates this down to drive an integrated 24V DC brushless motor core, meaning solar charging and backup options can easily be retrofitted.
Q3: What is the maximum boom arm length supported by this cabinet?
A: The YH-0DZ1920PRO configuration is specifically engineered for a maximum rod length of ≤4 meters. This allows operators to easily deploy standard straight profiles, lower clearance folding variants, or light fencing components.
Q4: Can this vehicle gate be integrated with external commercial security hardware?
A: Yes, absolutely. The integrated motherboard terminal block allows effortless dry-contact interfacing with automatic plate capturing devices, RFID proximity badges, barcode scanner stands, and traditional long range vehicle tracking loops.
Q5: What is the operational remote distance and environment rating?
A: The factory supplied wireless transmission modules provide a remote control distance of ≤30m. For environmental integrity, the 1015*320*225 MM cold rolled steel cabinet possesses a certified waterproof rating of IP55, thriving across an operating temperature range of -30℃~80℃.
Q6: What proactive safety and crash protection mechanisms are standard?
A: The electronic control board monitors active torque for auto-rebound sensing upon encountering any blockages. In the event of a structural blackout, the cabinet includes an ergonomic manual clutch mechanism allowing security staff to effortlessly lift the gate by hand.
Q7: What is the expected maintenance interval for the drive mechanism?
A: Because it utilizes a premium 24V DC brushless motor coupled with advanced frequency adjustment drives, the core mechanism avoids heavy physical wear components. It provides a long term operational lifespan with near zero routine maintenance overhead.
Contact BAROXON today for wholesale quotes, project tenders, and custom manufacturing inquiries:
E-mail: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
