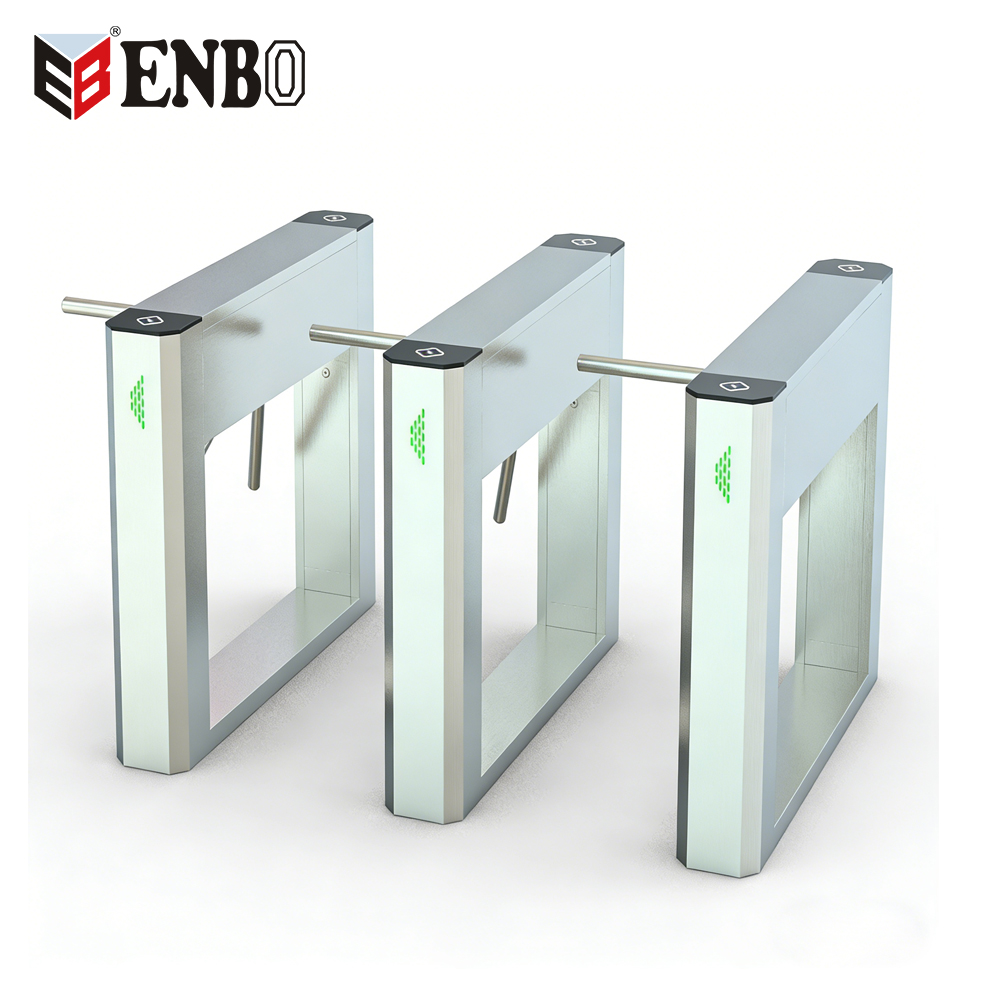

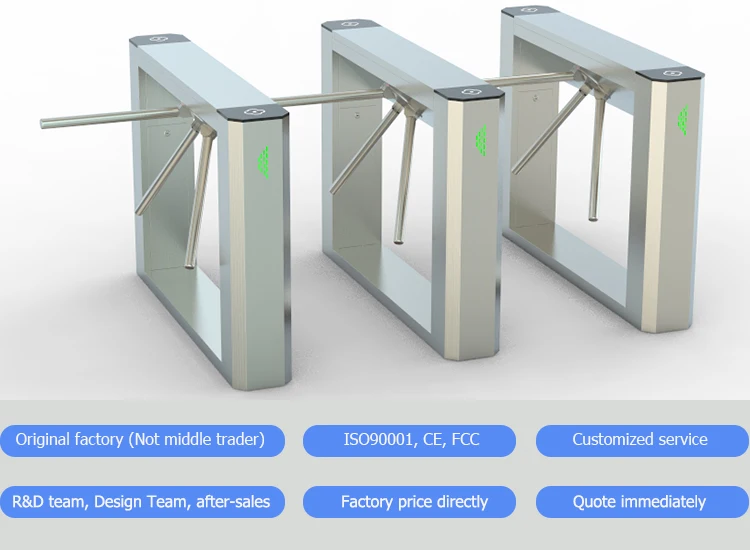

IP68 Waterproof Tripod Turnstile with NFC & QR Code Access Control

Key Attributes - Baroxon Heavy Duty Tripod Turnstile Indonesia

Protection Level	IP68 (Waterproof & Dustproof)	Barrier open/close time	0.2 s
Barrier Motor	Brushed Motor	Access Control Type	RFID Card. QR Code. IC Card. ESD System (Anti-Statis)
Turnstile Function	Anti-Pinch. Collision Avoidance. Anti-Tailgating. Counting Function	Operation Direction	2-Way (Bi-directional)
Communication Interface	TCP/IP (Network Integration)	Material	SUS304 Stainless Steel
Brand Name	Baroxon	Model Number	Ba-G107
Specification	1200*280*980mm	Power Supply Voltage	AC 220 ± 10% V. 50 Hz
Drive Motor	DC Motor 24V/100W	Operating Temperature	-15°C to 60°C
Relative Humidity	≤ 90%. non-condensing	Chassis Colors	Metallic silver/customizable
Gate rod length	510(mm)	Max Bearing Capacity	80Kg

Premium Features of Baroxon Ba-G107 for Indonesian Industrial Sites

1. Silent Operation: Running stable without noise and mechanical impact, ideal for quiet office environments in Jakarta.

2. Emergency Safety (Drop Arm): When power off, the arm drops down automatically for emergency evacuation (Fungsi Darurat Otomatis).

3. Flexible Control: Two-way or One-way adjustable for different pedestrian flow management (Akses Keluar Masuk).

4. All-Weather Durability: IP68 protection level for indoor and outdoor applications, resistant to heavy rain and dust.

5. High Compatibility: Standard Interface integrated with Face, ID/IC, UHF, and Fingerprint Readers (Sistem Absensi Terintegrasi).

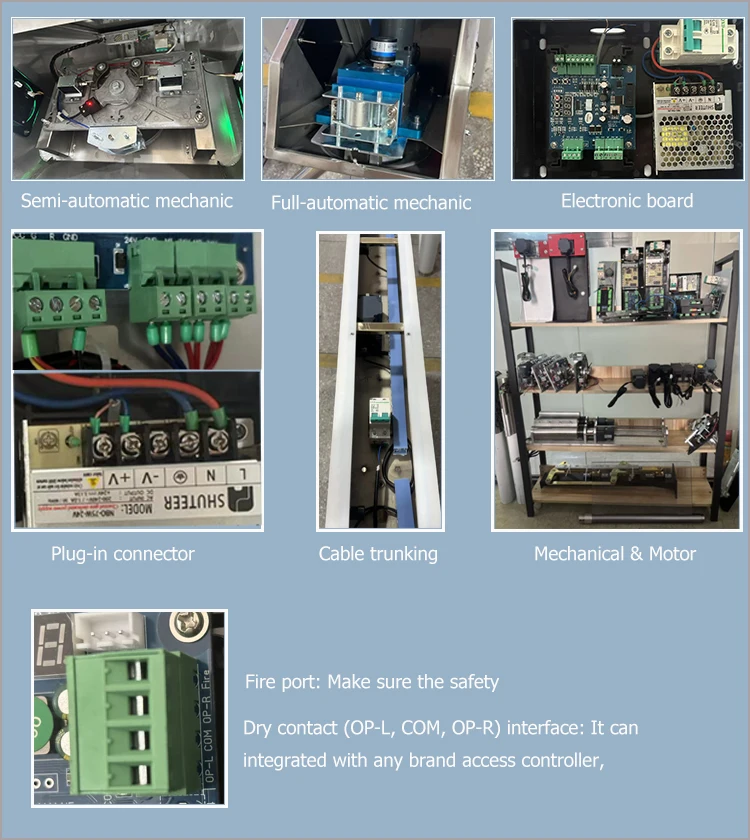

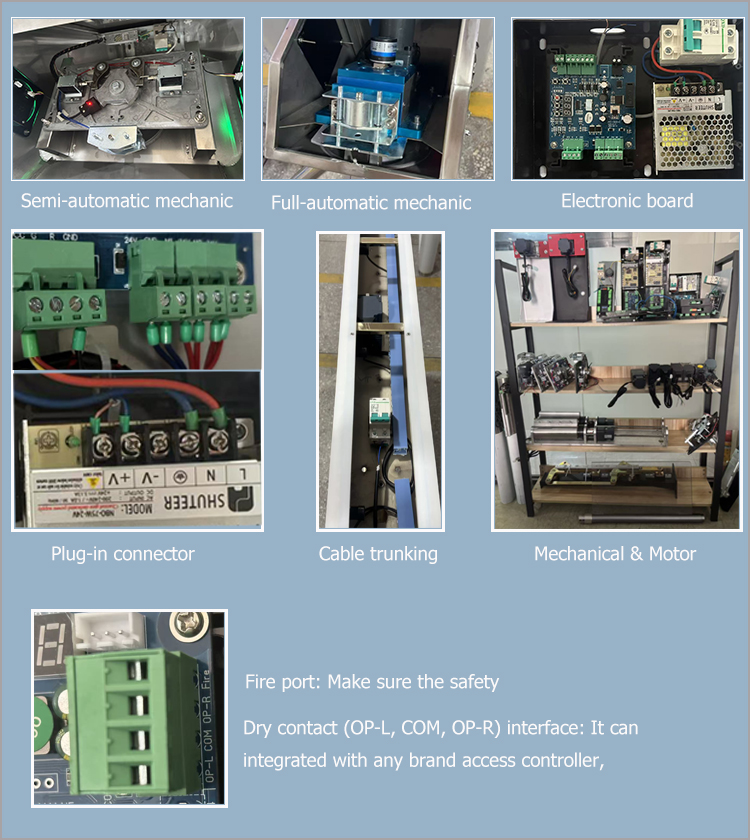

6. Universal Integration: Equipped with standard dry contact signal interface for all types of access control panels.

7. Visual Guidance: Equipped with LED directional indication and status lights for clear pedestrian navigation.

8. High Security: Positive action lock prevents multiple passages at once (Anti-Tailgating).

9. Modular Design: Easy assembly for installation in confined routes and quick repairs (Perawatan Mudah).

Technical Parameters - Detailed Specifications

Structure Parameters (Parameter Struktur)
Housing Material	304 Grade Stainless Steel (Anti-Karat)
Surface Treatment	Brushed Finish (Tampilan Elegan)
Technical Parameters (Parameter Teknis)
Lane Width	600mm
Passing Speed	45--50 people/min
Open/Close Speed	0.5sec
Turning Angle	120 degree
MCBF (Lifespan)	10.000.000 times
Weight	30kg
Electronic Parameters (Parameter Elektronik)
Power Supply	220V/AC. 50/60HZ
Rated Power	60W
Input Signal	Dry Contact (Signal Kering)
Driving Motor	Solenoid / DC Motor

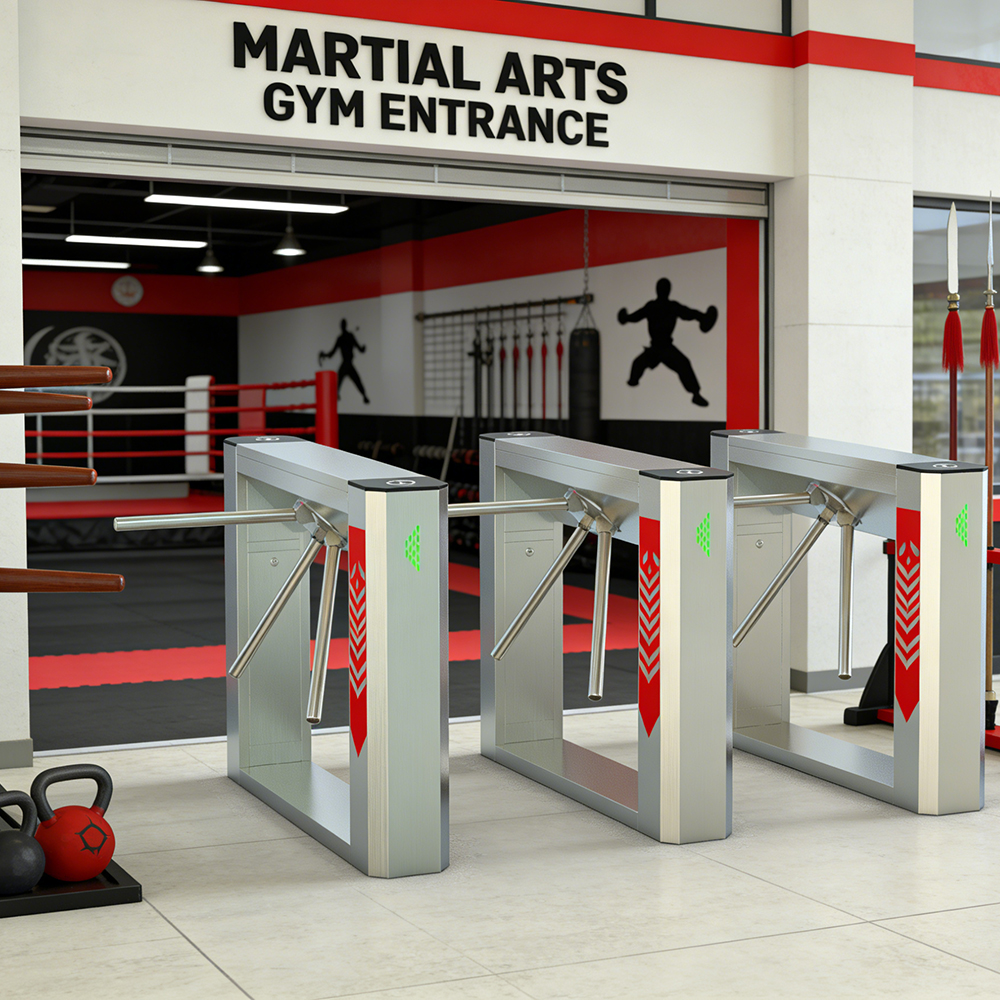

Occasion Application Indonesia

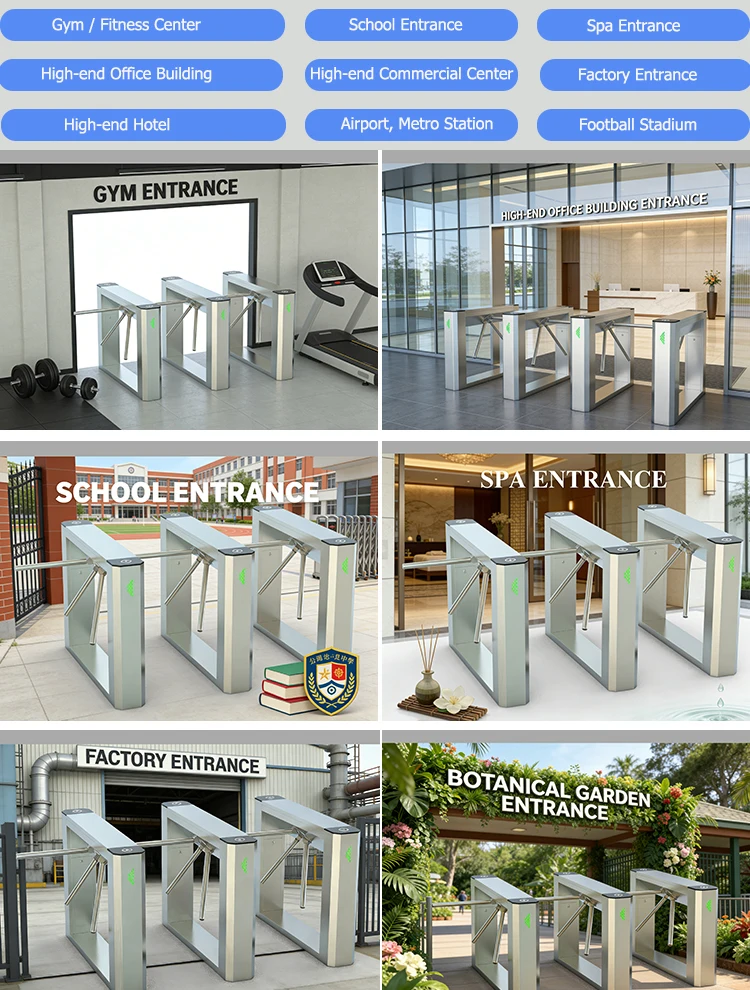

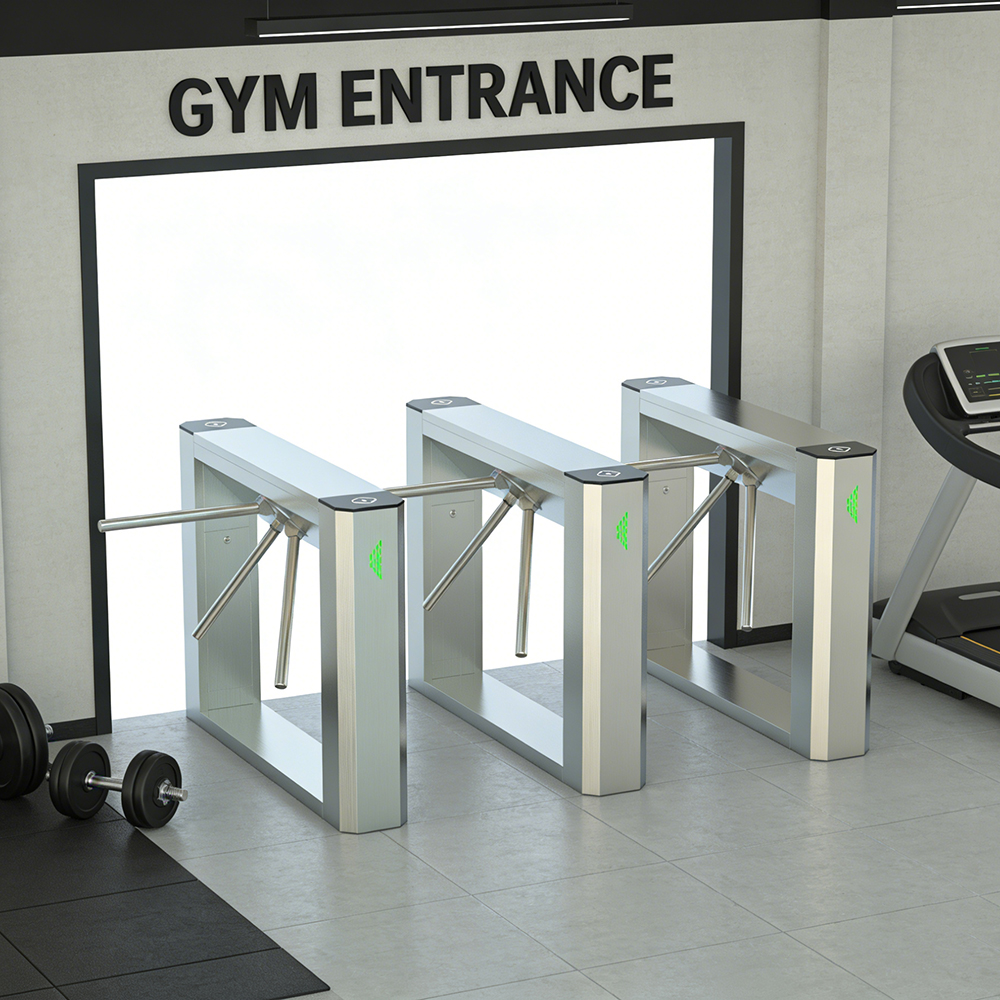

Baroxon Ba-G107 is suitable for high-end applications including Commercial Buildings, Subways, Airports, Customs, Exhibition Halls, Government Buildings, Financial Institutions, and Clubs across Indonesia.

Product Demo Video - Installation in Indonesia

Watch the smooth operation of Baroxon Ba-G107 Tripod Turnstile with QR Code Reader at a local site:

FAQ - Baroxon Indonesia Customer Support

1. Does the Ba-G107 support integration with local ESD systems for factories?

Yes, our system is fully compatible with ESD (Electrostatic Discharge) access control, ideal for electronics manufacturing in Cikarang or Batam.

2. Is the IP68 rating real for outdoor use in heavy rain?

Absolutely. The Baroxon Ba-G107 is built with high-grade sealing to ensure stable performance during the Indonesian monsoon season.

3. What happens if there is a power failure in the building?

The gate rod will drop automatically (Auto-Drop Arm) to ensure free passage for safety compliance (Kepatuhan K3).
