Compact mini boom barrier gate for smart parking management. Specifically engineered for smaller facilities requiring efficient and automated vehicle access control.
| Type | Card, Code, Key, Smartphone, Other | Special Features | Anti-Theft, Built-In Siren, Motion Detection, Night Vision, One-Way Audio, Time & Attendance, Other |
| Storage | Cloud, Memory Card | Material | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Selling Units | Single item |
User-friendly interface featuring an integrated motherboard for enterprise-grade security and seamless operational control.
Modular architectural design ensures efficient installation and maintenance of your automatic boom barrier systems.
Engineered with a high-performance DC brushless motor and variable frequency conversion technology for fluid, low-noise operation in any smart vehicle access control lane.
Enhanced safety protection suite includes advanced anti-collision sensing, auto-rebound mechanics, and emergency manual lifting capabilities.
Ideal for diverse applications including contactless RFID access, pedestrian control gates, supermarket entry systems, and high-traffic toll lane management.

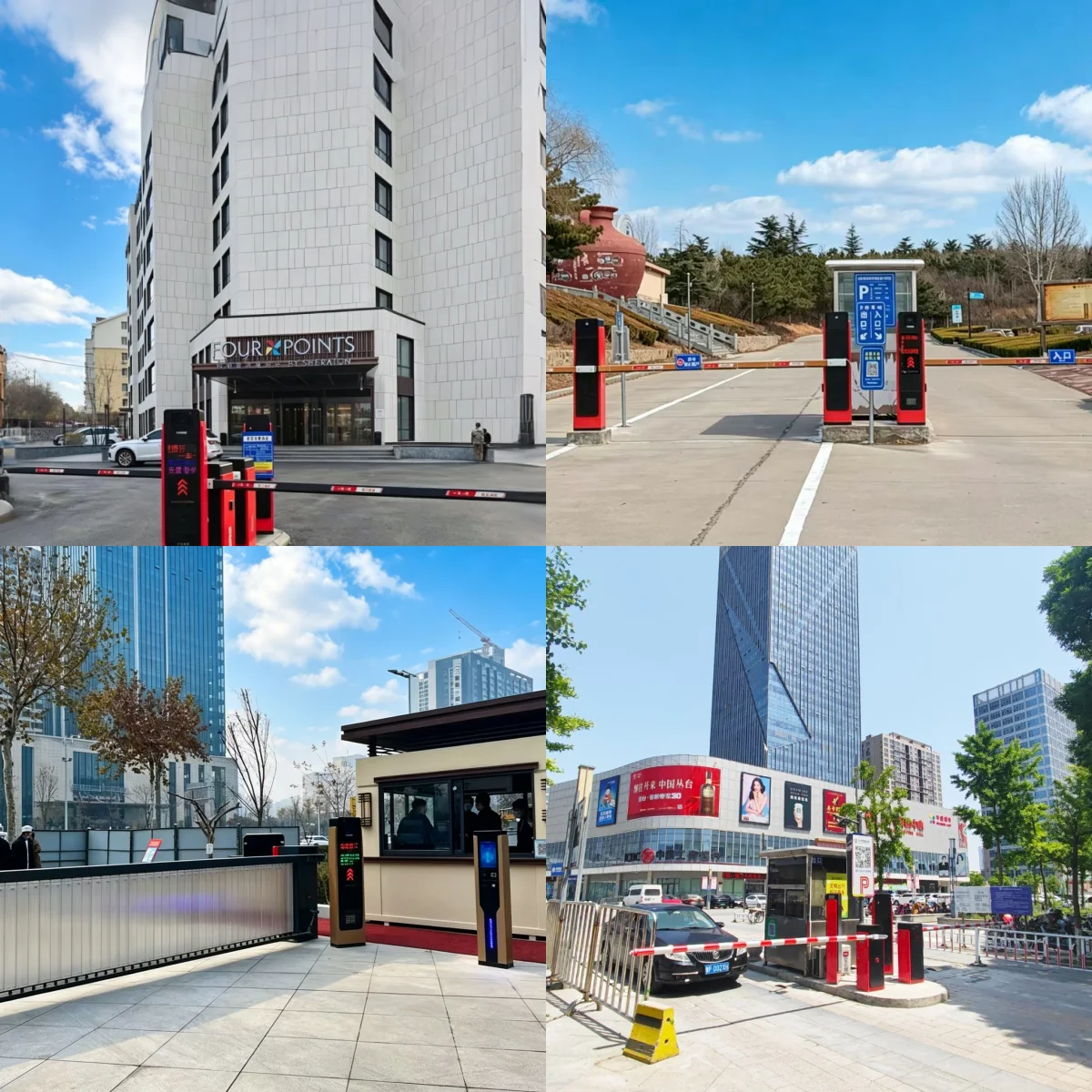

Usage scenarios include: Commercial Shopping Malls, Office Buildings, Hotels & Resorts, Exhibition Centers, Residential Apartment Complexes, Private Villas, Condominiums, Industrial Parks, Logistics Warehouses, Port Terminals, Construction Sites, Public Infrastructure, Airports, Railway Stations, Hospitals, Government Buildings, Universities, Sports Stadiums, and Highway Toll Gates.
Watch our industrial-grade automatic drop arm barriers and electric security boom gates in action below:
As a premier supplier in the perimeter security and access control industry, Baroxon provides comprehensive engineering and manufacturing for vehicle access, commercial security, and intelligent parking deployments.
Q: What are the opening/closing speeds?
A: Standard speeds range from 0.8s to 6s, tailored for high-traffic toll plazas and commercial site management.
Q: Can the gate work with LPR or RFID systems?
A: Yes, it is fully compatible with LPR (License Plate Recognition), RFID proximity cards, and UHF long-range readers.
Q: Is it suitable for outdoor environments?
A: Absolutely, our units feature IP54-IP66 ratings with robust, UV-resistant powder coatings for long-term endurance.
Q: What safety features are provided?
A: Systems include anti-crash sensing, auto-reverse logic, loop detector integration, and a manual clutch for power outages.
Q: What is the expected lifespan?
A: Our DC brushless components are engineered for over 5 million cycles, ensuring low-maintenance, reliable service.
Contact Baroxon today for wholesale quotes and project tenders:
E-mail: info@baroxon.com | WhatsApp: +8613405313100 | WeChat: +86 18660196023
