Secure your facility with a speed-adjustable RFID sticker boom barrier gate. Offers seamless, hands-free parking entrance control for employees, residents, and authorized vehicles.
Managing high-frequency vehicle lanes requires rugged, reliable infrastructure. The professional YH-0DZ1920PRO Intelligent Driveway Barrier, engineered by Baroxon Automated Access Systems, is designed specifically for heavy-duty commercial parking lots, toll plazas, industrial distribution centers, and high-security enterprise facilities. This system combines robust physical endurance with precise motor control to deliver maximum traffic management authority.
| Type | Card. Code. Key. Smartphone. Other Smart Access Options | Special Features | Remotely controlled take-off and landing. OEM&ODM |
| Storage Layout | Cloud. Memory Card Integration | Material Build | Cold rolled steel. Stainless Steel. Zinc Alloy Enclosure |
| Place of Origin | Shandong. China | Model Number | YH-0DZ1920PRO |
| Brand Name | Baroxon | Input Power | DC 24V Brushless / AC 110V / Servo Motor Configurations |
| Motor Power | 110/220VAC +10% High-Tolerance Transformer | Motor Drive | 24V DC brushless motor mechanical core |
| Operating Speed | 3S-6S Adjustable Variable Travel Timing | Maximum Rod Length | ≤4 meters Rigid Boom Profile |
| Chassis Dimensions | 1015*320*225 MM Industrial Housing | Remote Control Distance | ≤30m Long-Range Wireless Transmitter |
| Operating Temperature | -30℃~80℃ All-Weather Climate Range | Waterproof Rating | IP55 Moisture & Dust Ingress Protection |
| Selling Units | Single item in reinforced heavy-duty shipping crate |

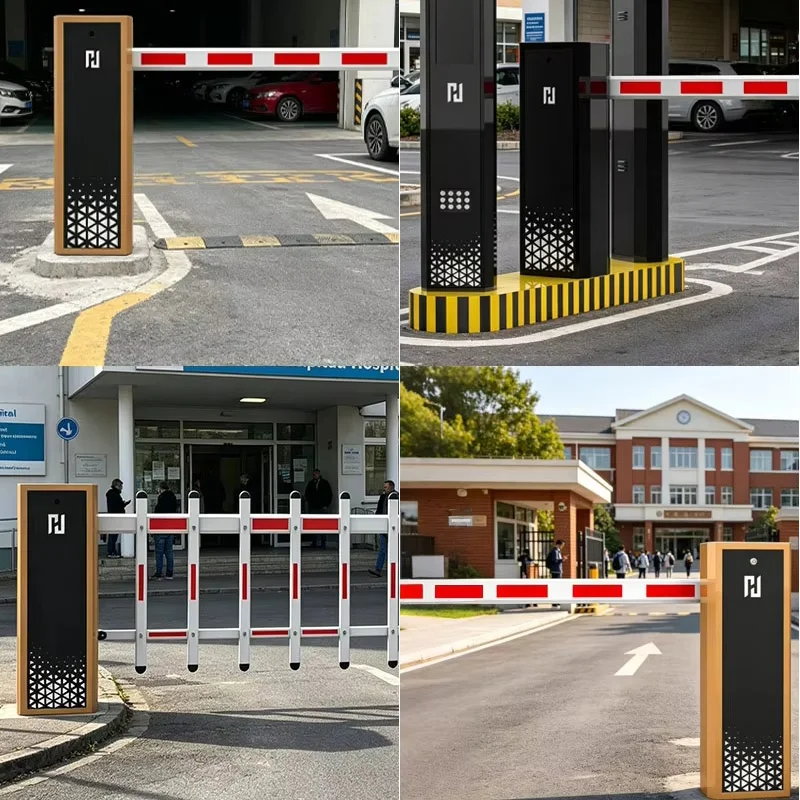

Our perimeter solutions—including contactless card reader turnstiles, heavy-duty swing barrier gates, high-speed pedestrian control barriers, and vehicle detector units—are extensively deployed across high-traffic environments such as: Commercial Shopping Malls, Business Centers, Executive Hotels, Exhibition Facilities, Residential Apartment Complexes, Private Villas, Condominiums, Industrial Factories, Logistics Parks, Distribution Warehouses, Freight Terminals, Construction Sites, Regional Airports, Railway Hubs, Healthcare Centers, Government Buildings, Universities, Sports Stadiums, and Highway Toll Gates.
As a premier global contractor and certified original equipment manufacturer, BAROXON provides absolute turnkey manufacturing capabilities for physical security. We specialize in producing heavy-duty vehicle entrance barriers, multi-tier fence systems, and high-performance traffic control barrier systems. Our solutions are explicitly trusted by toll operators, commercial facility managers, and security system integrators worldwide to manage perimeter operations efficiently.
Q1: What are the primary operating speed and timing configurations for this system?
A: The YH-0DZ1920PRO offers adjustable speeds ranging from 3S-6S. This flexibility allows field engineers to program smooth acceleration and deceleration limits based on the specific length of the arm and site traffic flow.
Q2: Can the barrier integrate with existing third-party access control platforms?
A: Absolutely. The system is engineered to connect easily with external hardware such as RFID proximity card systems, long-range UHF readers, barcode ticket terminals, and license plate recognition (LPR) cameras via dry-contact relays.
Q3: What is the maximum boom arm clearance dimension supported?

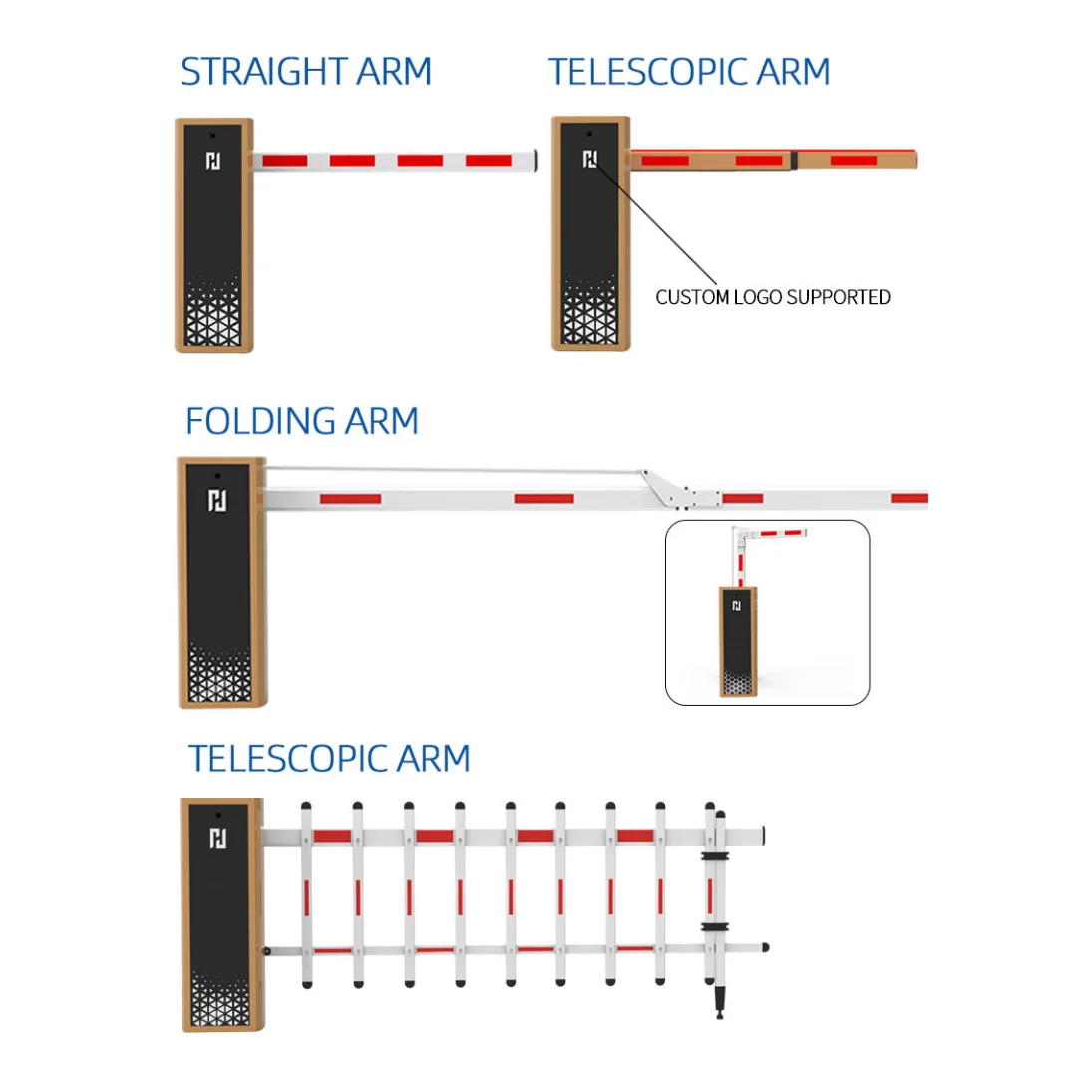

A: The YH-0DZ1920PRO core drive mechanism supports a maximum rigid straight arm length of ≤4 meters. For projects requiring wider clearances, our factory can configure custom balanced boom parameters.
Q4: How does the system handle sudden site power outages?
A: The operator includes an easy-to-use manual mechanical clutch release. In an emergency or loss of power, a security officer can disengage the transmission using a key to raise the boom arm manually and clear the lane.
Q5: Is the enclosure durable enough for extreme outdoor conditions?
A: Yes. Constructed from thick cold-rolled steel with a robust powder coating, the unit carries a verified IP55 weather protection rating. It operates reliably across a wide temperature range of -30℃ to 80℃.
Q6: What is the expected mechanical lifespan under heavy continuous traffic?
A: Equipped with a heavy-duty 24V DC brushless motor core and advanced variable frequency loops, our smart boom barrier gate minimizes internal gear wear and heat generation, delivering a operational lifespan of over 5 million cycles with minimal routine maintenance.
Contact the BAROXON B2B sales office today for wholesale pricing, formal project specifications, or custom OEM manufacturing options:
B2B Export Mailbox: info@baroxon.com
Engineering WhatsApp Desk: +8613405313100
WeChat Support: +86 18660196023
