Automated LPR parking terminal with a 4-line LED display and clear voice prompts. Optimizes driver experience in unmanned parking garages with instant plate recognition.
Optimizing vehicle access tracks requires high-efficiency control systems and elite durability. The premium YH-0DZ1920PRO Heavy-Duty Automatic Boom Barrier Gate is manufactured by BAROXON Access Control Solutions to deliver flawless driveway performance under high-turnover deployment. Built as a direct replacement for sluggish legacy security gates, this advanced lane control barrier leverages state-of-the-art torque logic to master vehicle ingress. Perfectly matched for multi-tenant retail hubs, freight loading bays, industrial parks, and modern estate entrances, it provides robust perimeter defense around the clock.
| Authentication Type | Card. Code. Key. Smartphone. Other Access Control Systems | Special Features | Remotely controlled take-off and landing. OEM&ODM Support |
| Storage Layout | Cloud. Memory Card Storage Setup | Cabinet Material | Cold rolled steel. Stainless Steel. Zinc Alloy Structure |
| Place of Origin | Shandong. China | Model Number | YH-0DZ1920PRO |
| Brand Name | Baroxon | Input Power | DC 24V Brushless / AC 110V / Servo Motor Compatible |
| Motor Power Supply | 110/220VAC +10% High-Tolerance Input | Motor Drive Core | 24V DC brushless motor Integration |
| Operating Speed | 3S-6S (Fully Adjustable Timing Controllers) | Maximum Rod Length | ≤4 meters Rigid Arm Profiles |
| Chassis Dimensions | 1015*320*225 MM Heavy Profile Chassis | Remote Control Reach | ≤30m Field Transmitter Operational Distance |
| Operating Temperature | -30℃~80℃ All-Weather Stability Range | Waterproof Rating | IP55 Sealed Protective Ingress Housing |
| Selling Units | Single item export standard box |

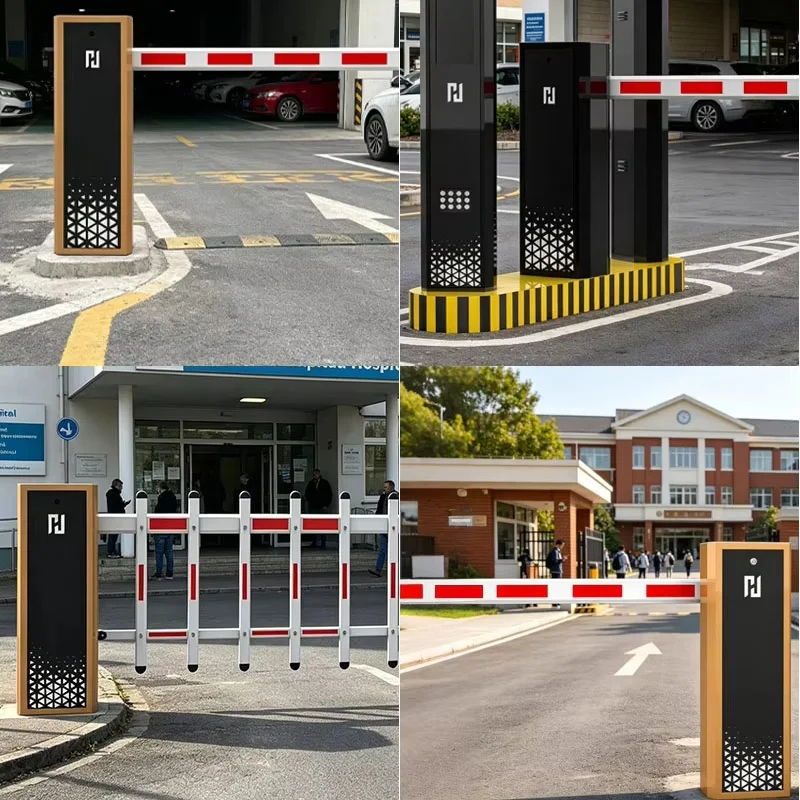

Our perimeter access solutions are engineered for high-frequency deployment across diverse sectors: Commercial Shopping Malls, Corporate Office Buildings, Business Centers, Hotels & Luxury Resorts, Exhibition Centers, Residential Apartment Complexes, Private Villas, Condominiums, Industrial & Logistics Hubs, Manufacturing Factories, Distribution Warehouses, Port Terminals, Construction Sites, Airports & Railway Stations, Hospitals & Healthcare Centers, Government Buildings, University Campuses, Schools, Sports Stadiums, Gymnasiums, and Highway Toll Gates.
Watch our heavy-duty entry boom operators pass rigorous lifecycle testing and real-time speed calibration sequences below:
As an internationally accredited design facility and direct heavy-duty security developer, BAROXON manufactures premier vehicle terminal architectures. We supply specialized engineering crews, global wholesalers, and commercial venue builders with reliable traffic control barrier systems, industrial pedestrian access speed turnstiles, anti-crash driveway defenses, and high-frequency hardware accessories tailored for maximum lane enforcement.
Q1: What safety mechanisms protect pedestrians and vehicles from accidental arm drops?
A: The system incorporates an intelligent electronic auto-rebound routine that triggers instantly if the arm encounters an obstacle during transit. Furthermore, our integrated logic motherboard terminal block seamlessly integrates with vehicle ground loops, infrared photo-eyes, and digital safety lane radars to guarantee comprehensive presence monitoring.
Q2: Can this barrier gate withstand continuous duty cycles in high-traffic logistics environments?
A: Yes. Equipped with a high-torque 24V DC brushless motor and precise frequency conversion adjustments, this smart boom barrier gate handles continuous heavy workloads with ease. It maintains constant cooling profiles and a 100% duty cycle, ensuring steady operation in busy multi-lane hubs.
Q3: How easily can the integrated logic controller interface with existing access control architectures?
A: Very smoothly. The terminal layout provides standard dry-contact relays and Wiegand interfaces out of the box. This permits direct connection to long-range UHF scanners, proximity RFID scanners, digital QR ticket readers, and advanced ANPR/LPR automatic license plate cameras.
Q4: How does the system respond to full site power blackouts?
A: The YH-0DZ1920PRO features an automatic emergency lift routine that raises the arm to clear the lane if input voltage drops completely. For maintenance or specific lockouts, an easy-to-use mechanical manual clutch release key allows guards to adjust the barrier arm angle.
Q5: What are the maximum length limitations and arm shape variations available for custom order bids?

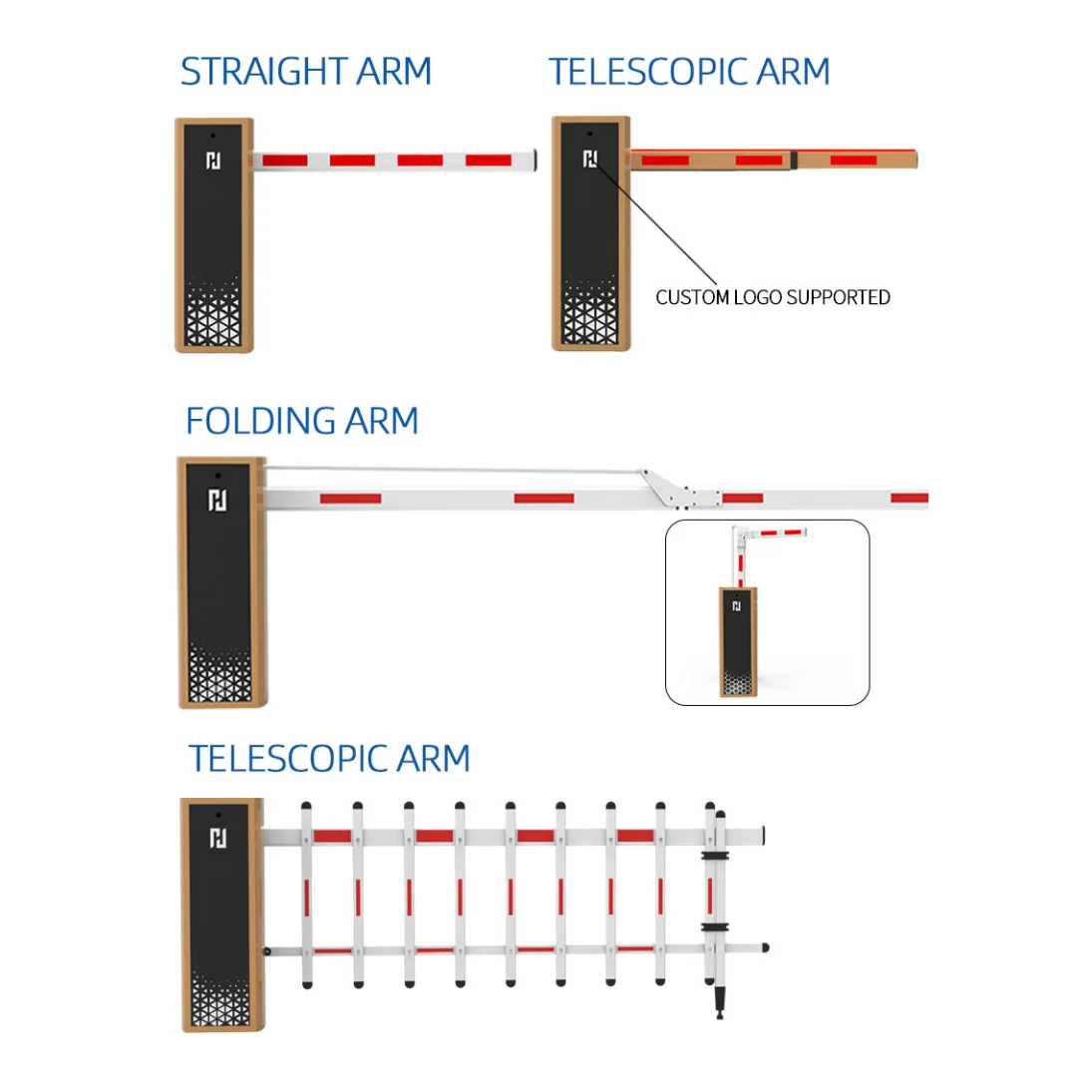

A: The standard straight rigid aluminum rod tracks support lengths up to ≤4 meters with open/close response times between 3S and 6S. For low-clearance basements or multi-tier perimeters, we also build 90°/180° articulated folding arms and high-density folding fence boom barriers.
Q6: How well does the outer cabinet resist rain and sub-zero temperatures?
A: Engineered with a tough IP55 ingress configuration, the cabinet combines high-gauge cold-rolled steel, stainless steel, and heavy zinc alloys. Sealed with a professional UV-stable powder coat finish, it resists structural deterioration across cold and hot extremes (-30℃ to 80℃).
