Copper bar Aluminum bar Bend, U-bend , Stand up,CNC Busbar Bending Copper CNC Busbar Bending
Ideal solution for bending copper and aluminum busbars with high efficiency, automation, and precision

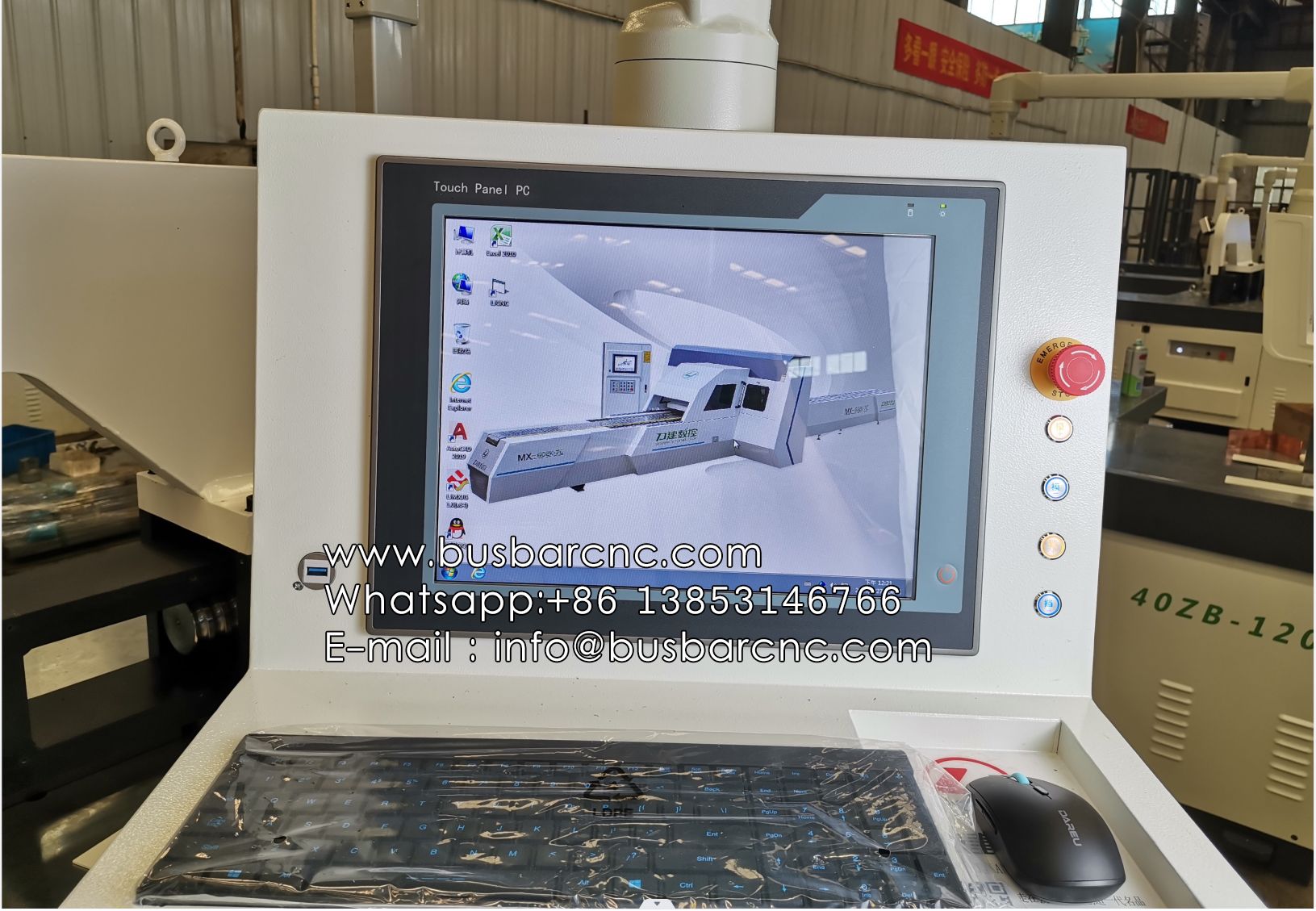

SASO certified CNC control system with self-developed CAD/CAM software
Patented "closed bending" technology for superior mechanical strength and precision
High-inertia servo motors ensure stable operation in Saudi climate conditions
Fully compliant with Saudi voltage standards (13.8kV - 69kV)
Linear guide rail system for balanced force distribution
Seamless integration with CNC busbar punching machines
Low maintenance requirements and operational costs
Electrical substations and power distribution systems
High and low voltage switchgear
Power transformers
Bus duct systems
Renewable energy projects
Heavy electrical industries
With local technical support in Riyadh and Jeddah, LTMC® provides complete busbar processing solutions that meet Saudi Electricity Company specifications, offering superior after-sales service and maintenance support.
| Model | HQ400-1200B | HQ400-2000B |
|---|---|---|
| Nominal Pressure | 400KN | 400KN |
| Gauge Length | 1200mm | 2000mm |
| Flat Bend Max Size | 15x160mm | 15x200mm |
| Vertical Bend Max Size | 12x120mm | 12x120mm |
| Parameter Comparison | ||
| Spindle Travel | 200mm | 200mm |
| Main Motor Power | 7.5kw | 7.5kw |
| Gauge Accuracy | ±0.15 | ±0.15 |
| Bending Accuracy | ±0.3 | ±0.3 |
| Machine Dimensions | 3500x1450x1850mm | 4300x1450x1850mm |
| Machine Weight | 3100kg | 3300kg |
Servo spindle motor: Rexroth
Ball Screw: TBI
Precision Planetary Gearbox: SEW-Eurodrive
Programmable Controller: Beckhoff
Lead Screw: Nanjing
Computer: Beijing Qiyang
AC Contactor: Siemens
Linear Guideway: Hiwin
A set of random maintenance tools
A pack of spare seals
A foot switch
We provide complete busbar processing solutions with full quality assurance and excellent after-sales service, backed by extensive experience in the Saudi and Gulf markets.
